Özelliklere genel bakış
-
Input
One channel transmitter for Memosens and analog (pH, ORP, conductivity)
-
Output / communication
4 to 20 mA, HART (optional), additional second output possible; HART communication, also later activatable
-
Ingress protection
Field housing:
IP66/67 (IEC 60529)
NEMA 4X (UL 50E)
DIN-rail housing: IP20
Uygulama alanı
Liquiline CM42B provides precise and reliable measurement of pH, ORP, conductivity or oxygen in demanding process applications. Benefit from its intuitive local operation and configuration and use its Bluetooth interface and the SmartBlue app to get a detailed measuring point overview on your mobile devices. The Bluetooth communication is secured by a unique concept. No need to worry about intruders. Different device versions allow for flexible adaptation to all installation requirements.
The Liquiline CM42B transmitter is suitable for demanding process applications in the following industries
Chemical
Food & Beverage
Life Sciences
Power & Energy
Oil & Gas
Mining, Minerals and Metals
With its international explosion protection approvals, such as IECEx, ATEX, C/US IS Cl. I div 1 and CHN-Ex, the transmitter is suitable for hazardous areas.
Avantajlar
Comfortable operation and configuration: The intuitive operating concept makes commissioning and configuration on-site easy and fast. Bluetooth connection and the SmartBlue app provide an overview of the measuring point on your smartphone or tablet.
Unique security: The Bluetooth connection features a unique security concept that prevents intrusion and enables sophisticated role management of the operating staff. You profit from external and internal security.

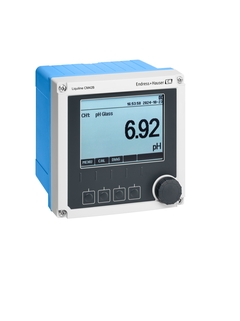

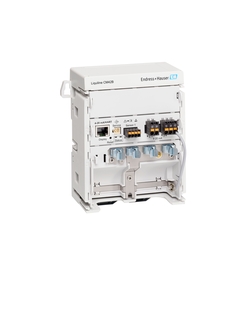

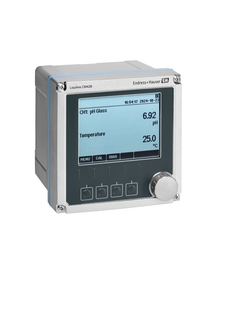

Suitable for all process environments: The transmitter is available as stainless steel, plastic or DIN-rail version. Simply select the suitable version to integrate it into a skid, use it in hygienic environments or apply it in hazardous areas.
Increased process safety and uptime: Memosens technology provides you with safe, digital data transmission and high availability of measured values. Plug & play of pre-calibrated sensors reduces process downtime for calibration.
Seamless system integration: Liquiline CM42B offers HCF-certified HART communication which makes integration into your process control system easy and secure.
Extended seçim
-
Üst düzey ürünler
- Son derece fonksiyonel ve uygun
Teknik mükemmellik
Sadelik

-
Özelleştirilmiş ürünler
- Zorlu uygulamalar için tasarlanmış
Teknik mükemmellik
Sadelik
Değişken
FLEX seçimleri | Teknik mükemmellik | Sadelik |
---|---|---|
Fundamental seçim Temel ölçüm ihtiyaçlarınızı karşılayın |
Teknik mükemmellik
|
Sadelik
|
Lean seçim Ana proseslerinizin üstesinden kolayca gelin |
Teknik mükemmellik
|
Sadelik
|
Extended seçim Proseslerinizi yenilikçi teknolojilerle optimize edin |
Teknik mükemmellik
|
Sadelik
|
Xpert seçim En zorlu uygulamalarınızda uzmanlaşın |
Teknik mükemmellik
|
Sadelik
Değişken |
-
-
Teknik Bilgiler (TI)
TI Liquiline CM42B
Two-wire transmitter
Field device and device for DIN rail mountingEN TR 25/02/2025Dil:
İngilizce
Versiyon:
25/02/2025
Dosya boyutu:
4.8 MB
Dosya adı:
TI01817CEN_0125-00.pdf
-
-
-
Kullanma Talimatı (BA)
BA Liquiline CM42B
Two-wire transmitter
Device for DIN rail mountingEN TR 24/02/2025Dil:
İngilizce
Versiyon:
24/02/2025
Dosya boyutu:
3.8 MB
Dosya adı:
BA02381CEN_0125-00.pdf
-
-
-
Kullanma Talimatı (BA)
BA Liquiline CM42B
Two-wire transmitter
Field deviceEN TR 24/02/2025Dil:
İngilizce
Versiyon:
24/02/2025
Dosya boyutu:
4 MB
Dosya adı:
BA02380CEN_0125-00.pdf
-
-
-
Kısa Talimat (KA)
KA Liquiline CM42B
İki telli transmiter
DIN ray montajı için cihazEN TR 21/01/2025Dil:
Türkçe
Versiyon:
21/01/2025
Dosya boyutu:
3.8 MB
Dosya adı:
KA01731CTR_0124-00.pdf
-
-
-
Kısa Talimat (KA)
KA Liquiline CM42B
İki kablolu transmiter
Saha cihazıEN TR 21/01/2025Dil:
Türkçe
Versiyon:
21/01/2025
Dosya boyutu:
3.9 MB
Dosya adı:
KA01730CTR_0124-00.pdf
-
-
-
Kurulum talimatları (EA)
EA Spare parts kits for Liquiline CM42B
Electronic and mechanical components
EN TR 18/03/2025Dil:
İngilizce
Versiyon:
18/03/2025
Dosya boyutu:
4.4 MB
Dosya adı:
EA01516CEN_0125-00.pdf
-
-
-
İnovasyon (IN)
Optimieren Sie Ihre kritischen Prozesse
Präzise und sichere Messung von pH, Redox,
Leitfähigkeit oder Sauerstoff mit
dem Messumformer Liquiline CM42BDil:
Almanca
Versiyon:
14/03/2025
Dosya boyutu:
12 MB
Dosya adı:
IN01359CDE_Liquiline_CM42B_ebrochure.pdf
-
-
-
İnovasyon (IN)
Optimizing demanding applications
Precise and safe measurement of pH, ORP, conductivity or oxygen with
Liquiline CM42B two-wire transmitterDil:
İngilizce
Versiyon:
09/01/2025
Dosya boyutu:
12.2 MB
Dosya adı:
IN01359CEN_Liquiline_CM42B_ebrochure.pdf
-
-
-
EU Beyan
Product family: Liquiline
Product root: CM42B-
Declaration number: EU_01232_01.25
Additional information: Ex ia IIC T6/T4 GaEN TR 20/02/2025Dil:
İngilizce
Versiyon:
20/02/2025
Dosya boyutu:
331.3 KB
Dosya adı:
EU_01232_01.25.pdf
-
-
-
EU Beyan
Product family: Liquiline
Product root: CM42B-
Declaration number: EU_01231_01.25EN TR 20/02/2025Dil:
İngilizce
Versiyon:
20/02/2025
Dosya boyutu:
329.6 KB
Dosya adı:
EU_01231_01.25.pdf
-
