Özelliklere genel bakış
-
Measured variables
Volumetric flow, a. c., volume a. c., gas velocity, sound velocity
-
Measuring Medium
Natural gas, air, C2H4, steam, process gases (e. g. CO2 up to 100%, N2, O2, Cl2 etc.), gases like sour gas or bio gas with high H2S content
-
Nominal pipe size
2" ... 24"
(DN 50 ... DN 600)
Uygulama alanı

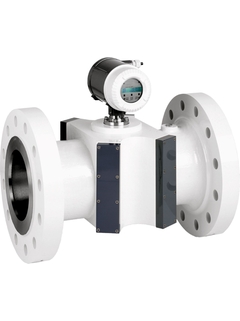

The FLOWSIC600 is an ultrasonic flowmeter that sets the standard in its market segment. The design shows that it is geared towards the harsh conditions of the industry. Thanks to its compact design with integrated cable routing, the measuring system is durable, fail-safe, low-maintenance, and exhibits long-term stability. The FLOWSIC600 has extensive diagnostic options that allow faults to be detected before the measurement is affected and offers process monitoring based on the speed of sound.
Process gases flow metering
Industry gas metering CO2, H2, Air, N2, O2, NH3, Ethylene, Helium, Argon
Internal allocation measurement
For gases with high H2S component such as sour gas or biogas
Device properties:
Highly efficient ultrasonic transducer - up to gas temperatures of +105 °C and pressures up to 250 bar
Direct path layout
Intelligent self-diagnostics
Compact, robust design
Integrated log book and data logger
Large measuring range 1:120
Bidirectional measurement
Low power consumption: <1 W
Avantajlar
Long-term stability, reliable measurement
Low maintenance due to intelligent self-diagnostics
Virtually immune to pressure regulator noise
Ultrasonic transducers can be exchanged under operating pressure
Wide application range
Xpert seçim
-
Özelleştirilmiş ürünler
- Zorlu uygulamalar için tasarlanmış
Teknik mükemmellik
Sadelik
Değişken
-
Özelleştirilmiş ürünler
- Zorlu uygulamalar için tasarlanmış
Teknik mükemmellik
Sadelik
Değişken
| FLEX seçimleri | Teknik mükemmellik | Sadelik |
|---|---|---|
Fundamental seçim Temel ölçüm ihtiyaçlarınızı karşılayın |
Teknik mükemmellik
|
Sadelik
|
Lean seçim Ana proseslerinizin üstesinden kolayca gelin |
Teknik mükemmellik
|
Sadelik
|
Extended seçim Proseslerinizi yenilikçi teknolojilerle optimize edin |
Teknik mükemmellik
|
Sadelik
|
Xpert seçim En zorlu uygulamalarınızda uzmanlaşın |
Teknik mükemmellik
|
Sadelik
Değişken |
Loading alternative products
-
Measuring principle
Ultrasonic transit time difference measurement
-
Measured variables
Volumetric flow, a. c., volume a. c., gas velocity, sound velocity
-
Measuring Medium
Natural gas, air, C2H4, steam, process gases (e. g. CO2 up to 100%, N2, O2, Cl2 etc.), gases like sour gas or bio gas with high H2S content
-
Repeatability
< 0.1 % of the measured value
-
Accuracy
2-path version ≤ ± 1 %
4-path version ≤ ± 0.5 %
Typical accuracy, see application specific data for detailed information -
Medium temperature range
ATEX:
–40 °C ... +105 °C at T1, T2, T3;
–40 °C ... +91 °C at T4
Other Ex certifications: –40 °C ... +180 °C -
Operating pressure range
0 bar (g) ... 250 bar (g)
On request: Up to 450 bar (g) -
Nominal pipe size
2" ... 24"
(DN 50 ... DN 600) -
Metrological approvals and certificates
ISO 17089-2
MTBF: 15.4 years -
Hazardous area approvals
IECEx:
Gb/Ga Ex db eb ib [ia Ga] IIA T4
Gb/Ga Ex db eb ib [ia Ga] IIC T4
Ultrasonic transducers intrinsically safe
ATEX:
II 1/2 (1) G Ex ia/db eb ia [ia Ga] IIA/IIB/IIC T4...T1 Ga/Gb
III 1/2 (1) G Ex ia/db eb ia [ia Ga] IIC T6 Ga/Gb
Ultrasonic transducers intrinsically safe
NEC/CEC (US/CA):
Class I, Division 1, Groups B, C, D T4
Class I, Division 2, Groups A, B, C, D T4
Class I, Division 1, Group D T4
Class I, Division 2, Group D T4
Ultrasonic transducers intrinsically safe -
Digital Outputs
3 outputs:
30 V, 10 mA
Passive, electrically isolated, Open Collector or according to NAMUR (EN 50227), fmax = 6 kHz
(scalable) -
Digital communication
Modbus ASCII
Modbus RTU
HART
-
-
Yetkinlik Broşürü (CP)
FLOWSIC – flow meters and instruments
-
Yetkinlik Broşürü (CP)
İngilizce versiyonu - 12/2024New version available in EnglishPrecise quantity measurement for accurate billing and process control
Dil:
İngilizce
Versiyon:
18/12/2024
Dosya boyutu:
3.1 MB
Dosya adı:
8030079_CP_Flow_meters_en_V1-0_2025.01_EHS.pdf
-
-
-
İnovasyon (IN)
FLOWSIC600 – reliable flowmeter for process applications
-
İnovasyon (IN)
İngilizce versiyonu - 01/2025New version available in EnglishThe FLOWSIC600 measurement device is an ultrasonic gas flowmeter and sets the standard in its market segment.
Dil:
İngilizce
Versiyon:
01/01/2025
Dosya boyutu:
3.3 MB
Dosya adı:
8029730_IN_FLOWSIC600_en_V5-0_2025.01_EHS.pdf
-
-
-
